Cage Names & Dimensions
Millimetres
Inches
H
W
D
H
W
D
Duplex
508
915
610
20
36
24
Micro
508
610
610
20
24
24
Small
610
610
610
24
24
24
Medium
610
762
610
24
30
24
Midi
685
610
762
27
24
30
Midi-Plus
700
700
750
27 ½
27 ½
29 ½
Large
685
915
762
27
36
30
Large-Plus
700
1100
750
27 ½
43 ¼
29 ½
Ex-Large
865
762
735
34
30
29
½ Jumbo
915
610
915
36
24
36
¾ Jumbo
915
915
915
36
36
36
Jumbo
915
1220
915
36
48
36
Jumbo-Plus
915
1525
915
36
60
36
Extra Jumbo-Plus
1143
1525
915
45
60
36
Super Jumbo-Plus
1372
1525
915
54
60
36
Jumbo-Plus Walk-In
1600
1525
915
63
60
36
A brief guide to cage construction and configurations
Cages consist of a fibreglass shell in a 50 x 50mm timber frame and are fitted with stainless steel gates or toughened glass doors as appropriate.
¾ Jumbo, Jumbo and Jumbo-Plus cages are made in 2 halves, as their overall dimensions are too large for them to be taken through a standard single doorway. They are delivered fully assembled and accompanied by instructions for dismantling and reassembly.
Cages are made in many sizes but there are 4 standard depths: 915mm, 762mm, 750mm and 610mm. A mixture of cage sizes and depths will often be used, but usually each row of an installation will have cages of the same height and depth.

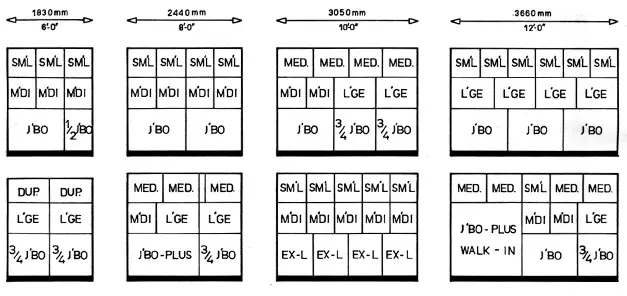

Sample Cage Configurations
We do not recommend a 3 Tier System where Jumbo range cages are included, as the third row is too high for easy access; the illustration is intended only to demonstrate possible cage combinations in a variety of row lengths.
